How to create custom activities and/or entities?

34 views 0

Written by Administrator
January 5, 2015

This blog article outlines how to customize the TelephoneIntegration Context Menu to create new activities and/or entities.

Requirements: TelephoneIntegration Client v.6.20 or higher

Examples: There are several CRM-functionalities available in the context menu of a phone call.

  • Per default, the following Activity Types are available as CRM standard:

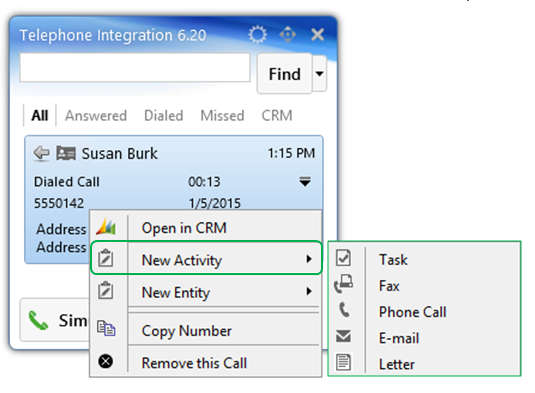

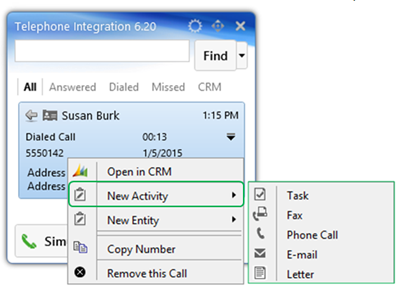

Figure 1: Standard Activity type in the context menu of TI Client.

  • But you can expand the default by creating custom activities, like for example Create Lynch Chat and Create Campaign Response.

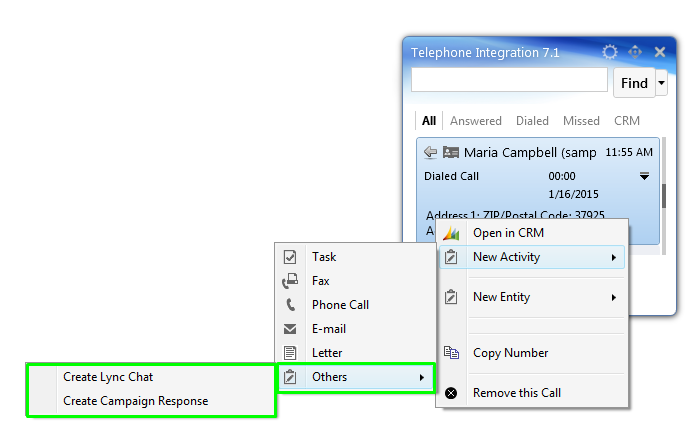

Figure 2: Custom entity types in the context menu of TI Client.

How to create custom activites and/or entities

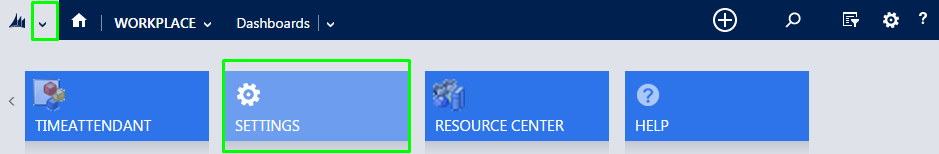

To create a new custom activity and/or entity, you have to add a new Settingskey. To do so, please open your CRM and navigate to Settings.





Figure 3: Open settings

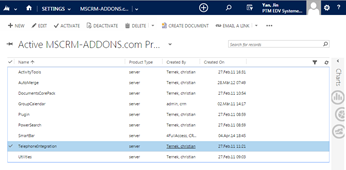

In the settings, double-click on TelephoneIntegration.

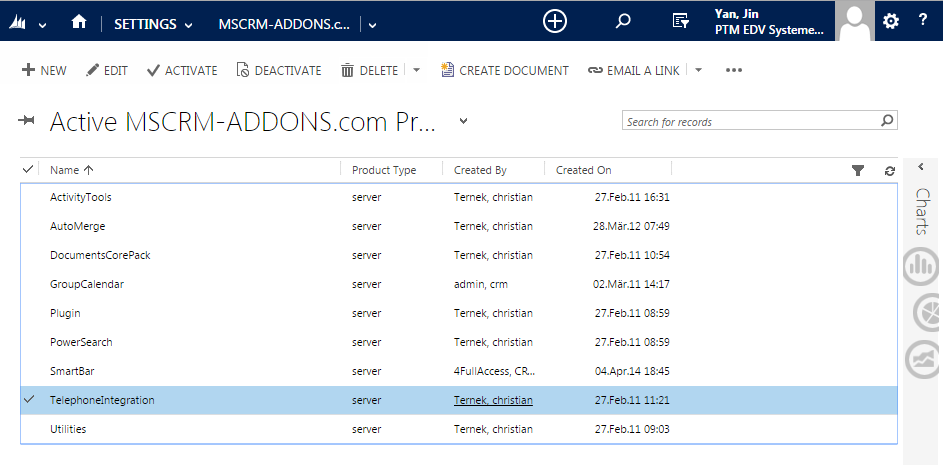

Figure 4: Select TelephoneIntegration

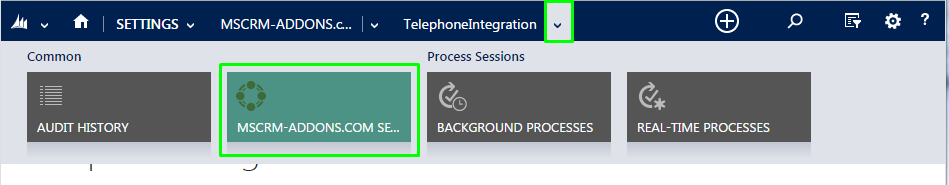

In the main navigation section at the top, click on the TelephoneIntegration drop-down and select the MSCRM-ADDONS.COM Settingskeys.





Figure 5: MSCRM-ADDONS.COM Settingskeys

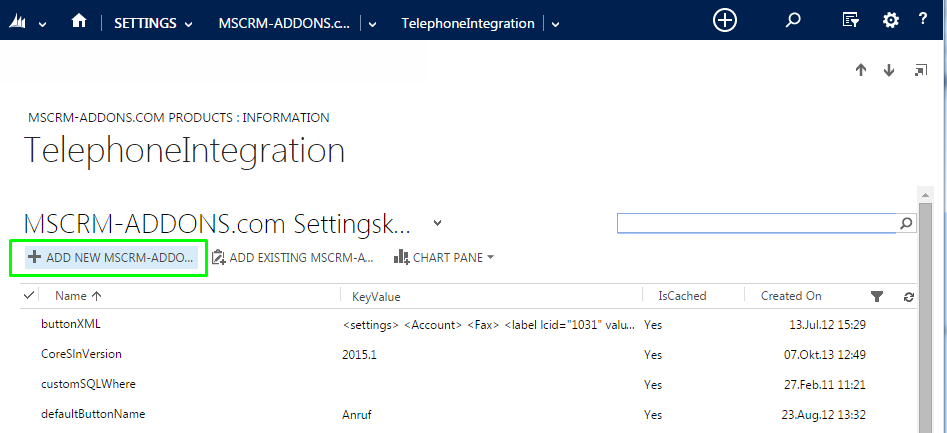

In the next window, click on the [+ADD NEW MSCRM-ADDONS.com Settingskey]-button.





Figure 6: [+ADD NEW MSCRM-ADDONS.com Settingskey]

Next, type in following:

– Name*: customentities.xml (This is the key value Name)

– IsCached*: Yes

– KeyValue: see figure 7, 8 and 9

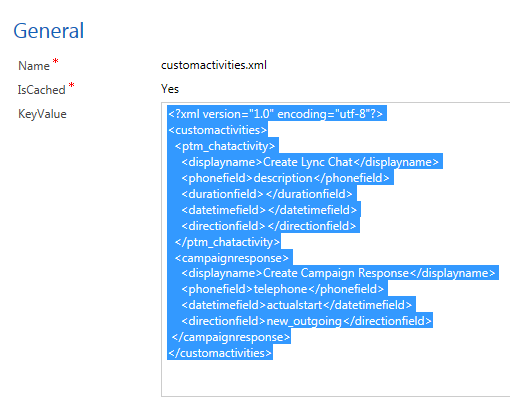

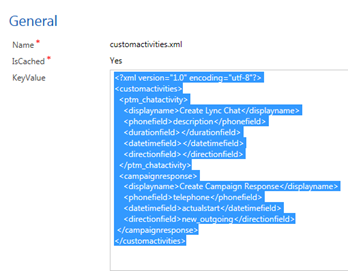

Figure 7: SettingsKey – General window

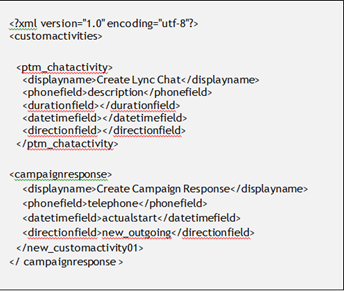

Figure 8: Key value – enlarged

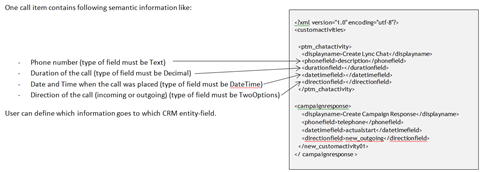

Figure 9: Key value – explained

Custom Entities KeyValue:

In order to create custom entities, please use the following KeyValue. This example shows the KeyValues for Goal and Currency.

customentities.xml



Currency

currencyname





Goal

title



That’s it! We appreciate your feedback! Please share your thoughts by sending an email to support@mscrm-addons.com.



reworkneeded … need graphic updates
