How to shorten an alias (Alias is longer than 128 characters)

This article outlines how to shorten an alias in DocumentsCorePack-TemplateDesigner when an error message appears that says: “Alias is longer than 128 characters”

Should you get an error that your alias is longer than 128 characters, please do the following steps.
Please note that the 128 character limitation is not from our side but is a standard limitation from CRM.

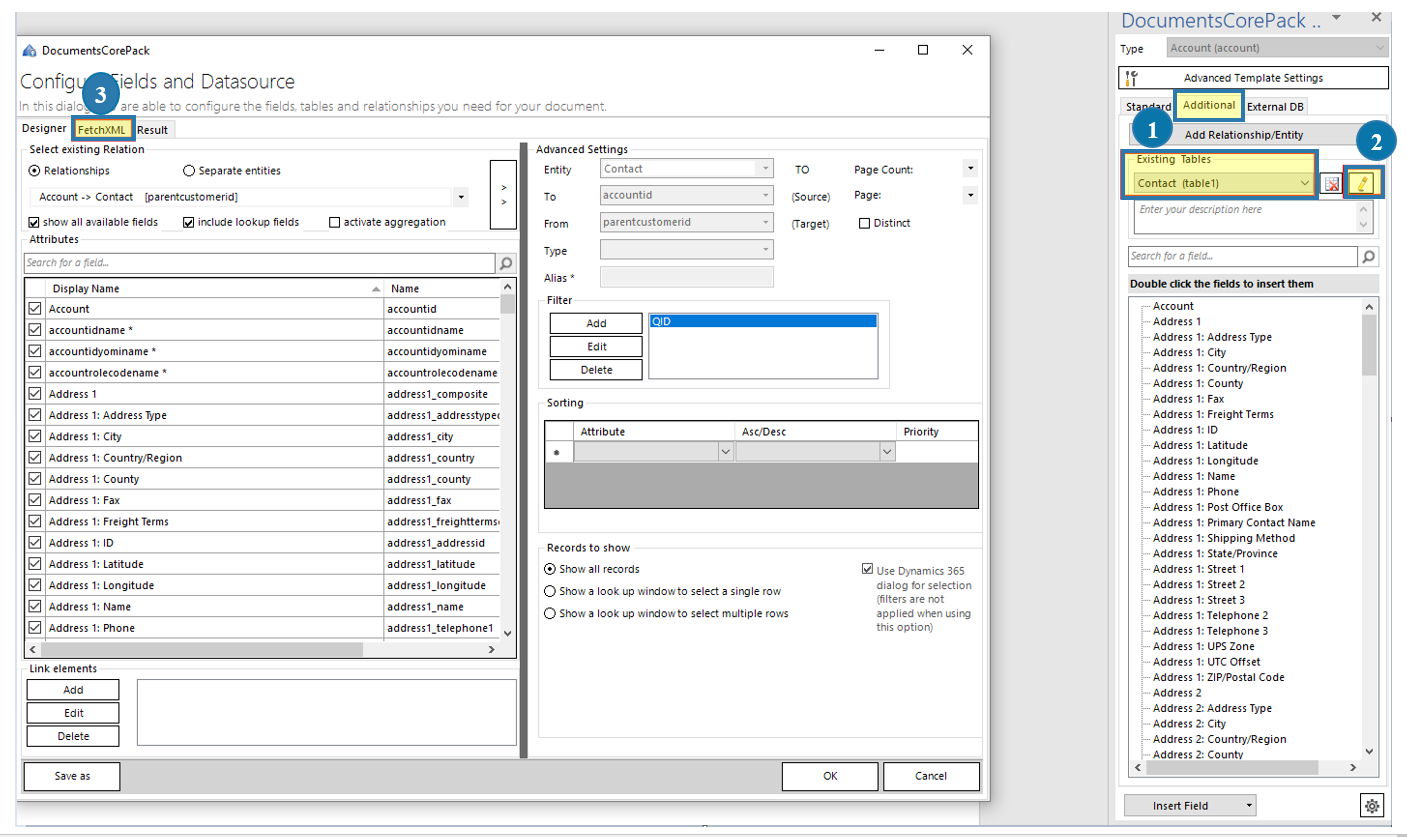

Open your relationships by editing them using the pencil symbol and navigate to fetchXML:

Figure 1: Configure the relationship

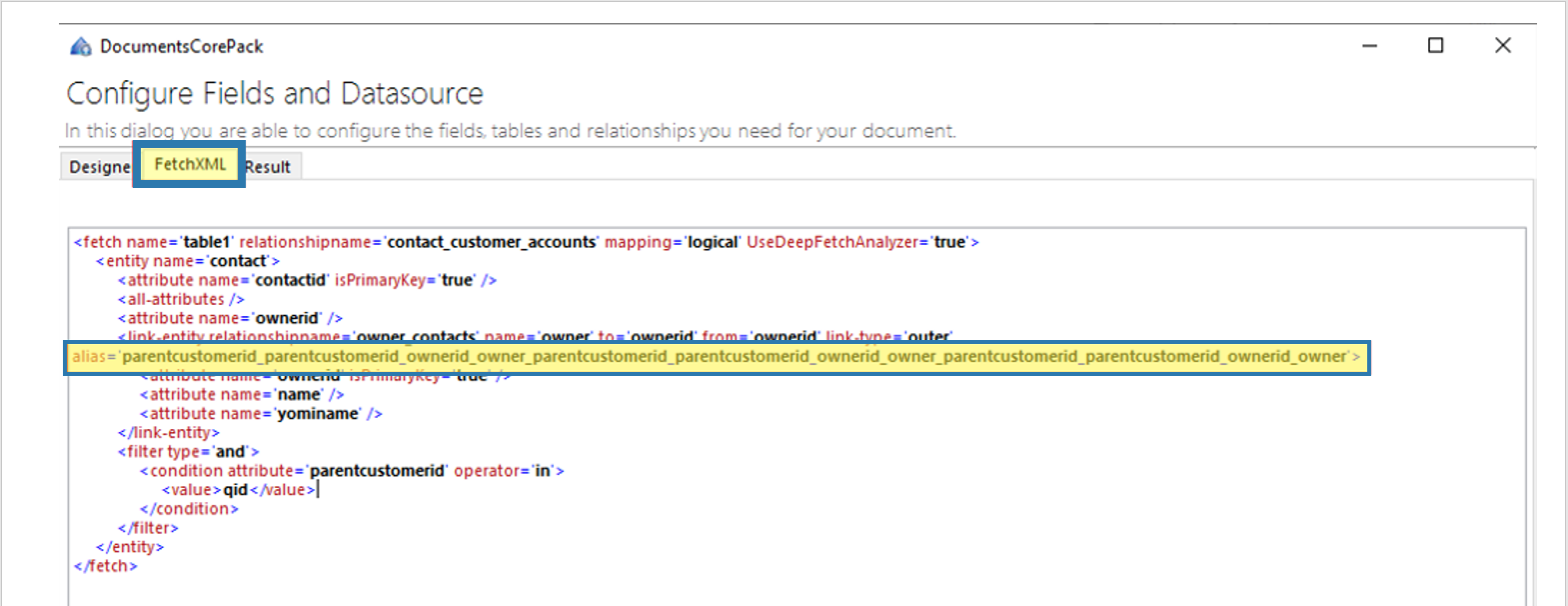

In the FetchXML View search for the long alias names that need to be shortened due to the character limitation from Dynamics 365:

Figure 2: FetchXML View

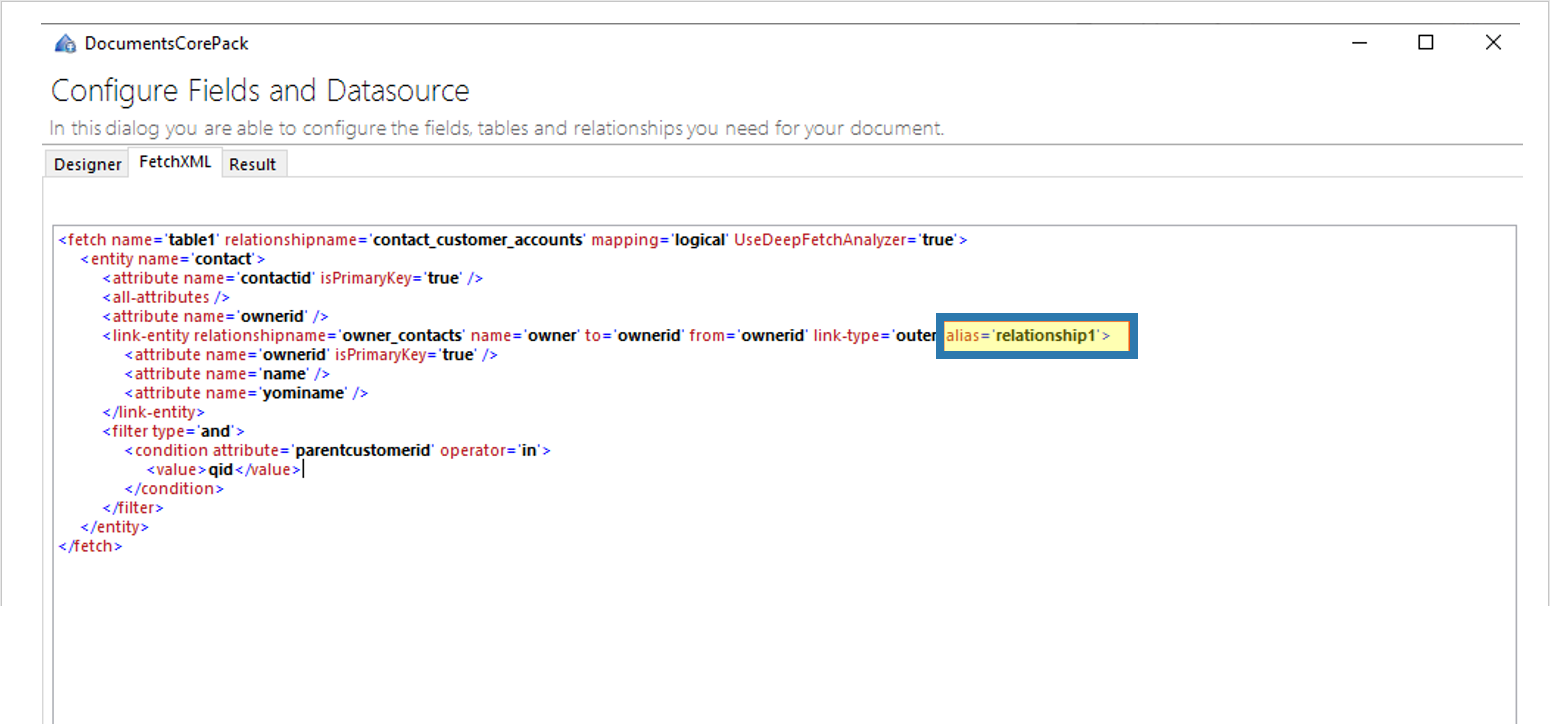

Give it a short, descriptive name, only change the alias tag:

Figure 3: changed FetchXML View

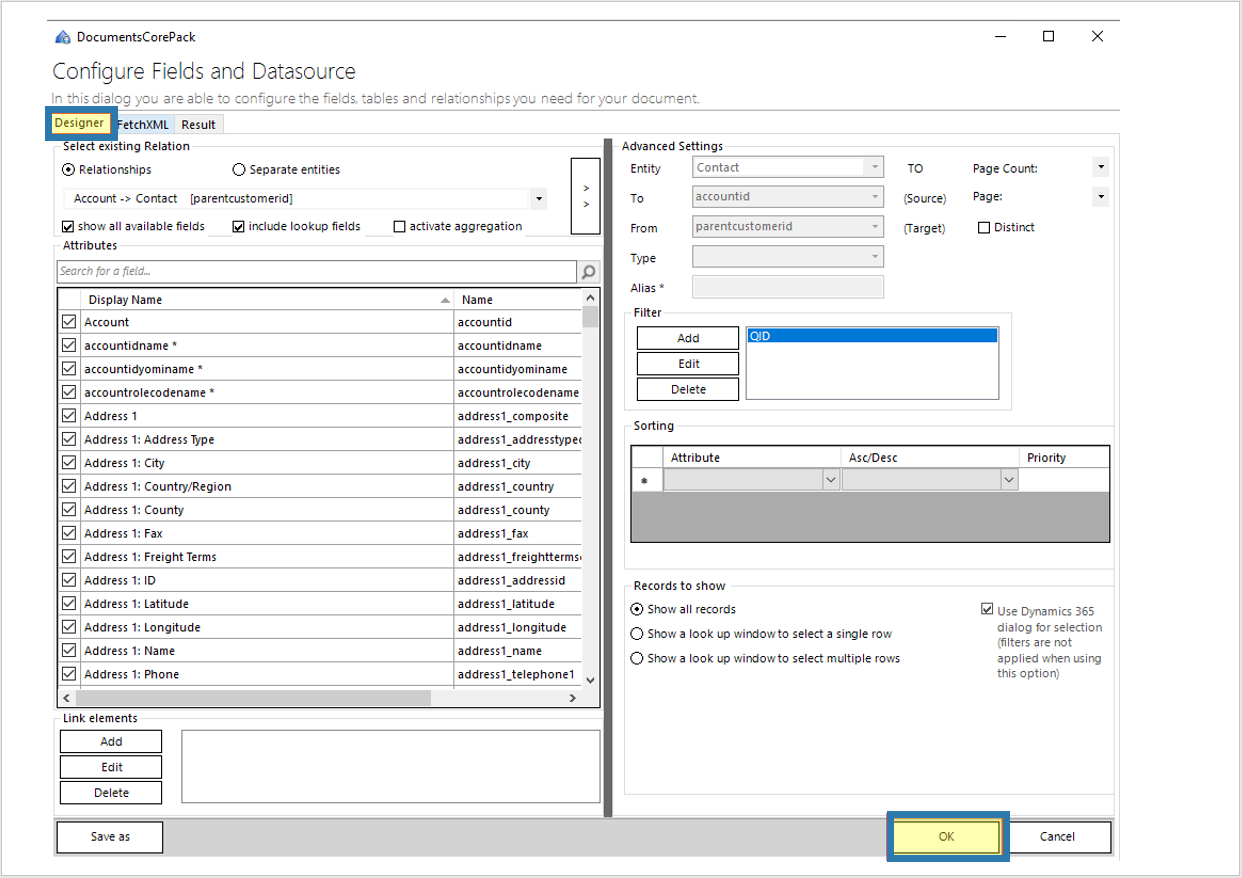

Switch back to the Designer View and click OK.

Figure 4: Designer View

Afterward, it is necessary to reinsert all fields from that relationship.

That’s it! We appreciate your feedback! Please share your thoughts by sending an email to support@mscrm-addons.com.
