This article outlines how to use the “Insert as Picture-Link-Field”-button within the “Insert”-button in Open Office XML template (.docx). This feature allows you to insert a picture directly from a web link that is stored in any CRM-field.
Requirments: DocumentsCorePack v5.97 and higher
Example:
Figure 1: merged template. DocumentsCorePack resolved the URL to your picture and inserted it into the document.
Click here to read more about the functionalities of the “Insert”-button.
HOW TO: insert a Picture-Link-Field to your record, step-by-step description
To use this functionality, open an entity in CRM. You can open any entity you prefer. In our example its “Account”. We prepared our CRM-entry and inserted the picture link in the website-field. See screenshot below:

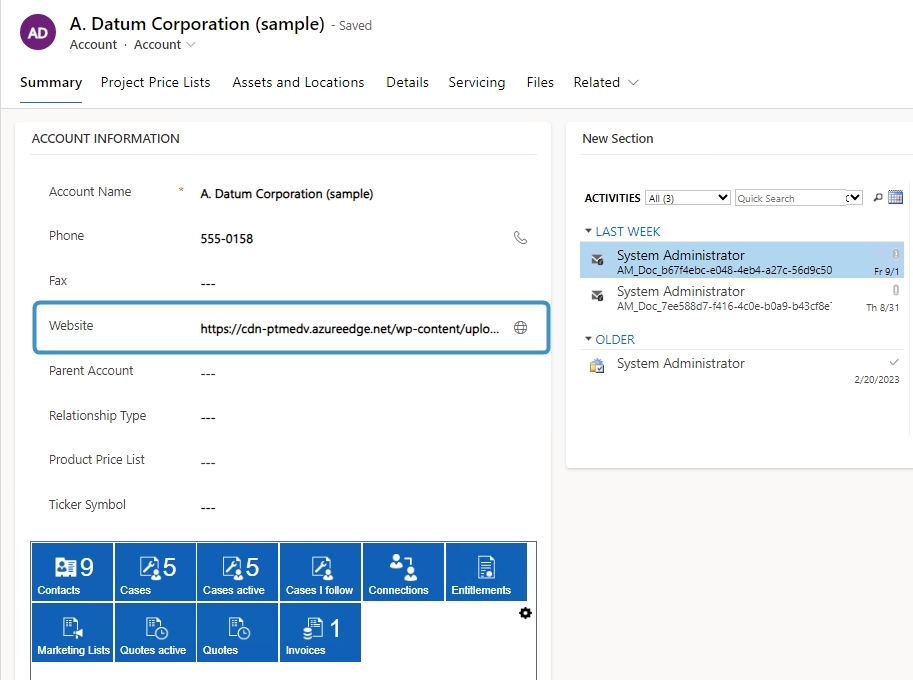

Figure 2: Inserted picture link in the website-field.
1 Step: Select a Field
Please open a template or create a new one with a click on the “www.mscrm-addons.com”-tab, select “Insert MailMerge Fields” and answer the question with yes to get to the “DocumentsCorePack – Task Pane”.

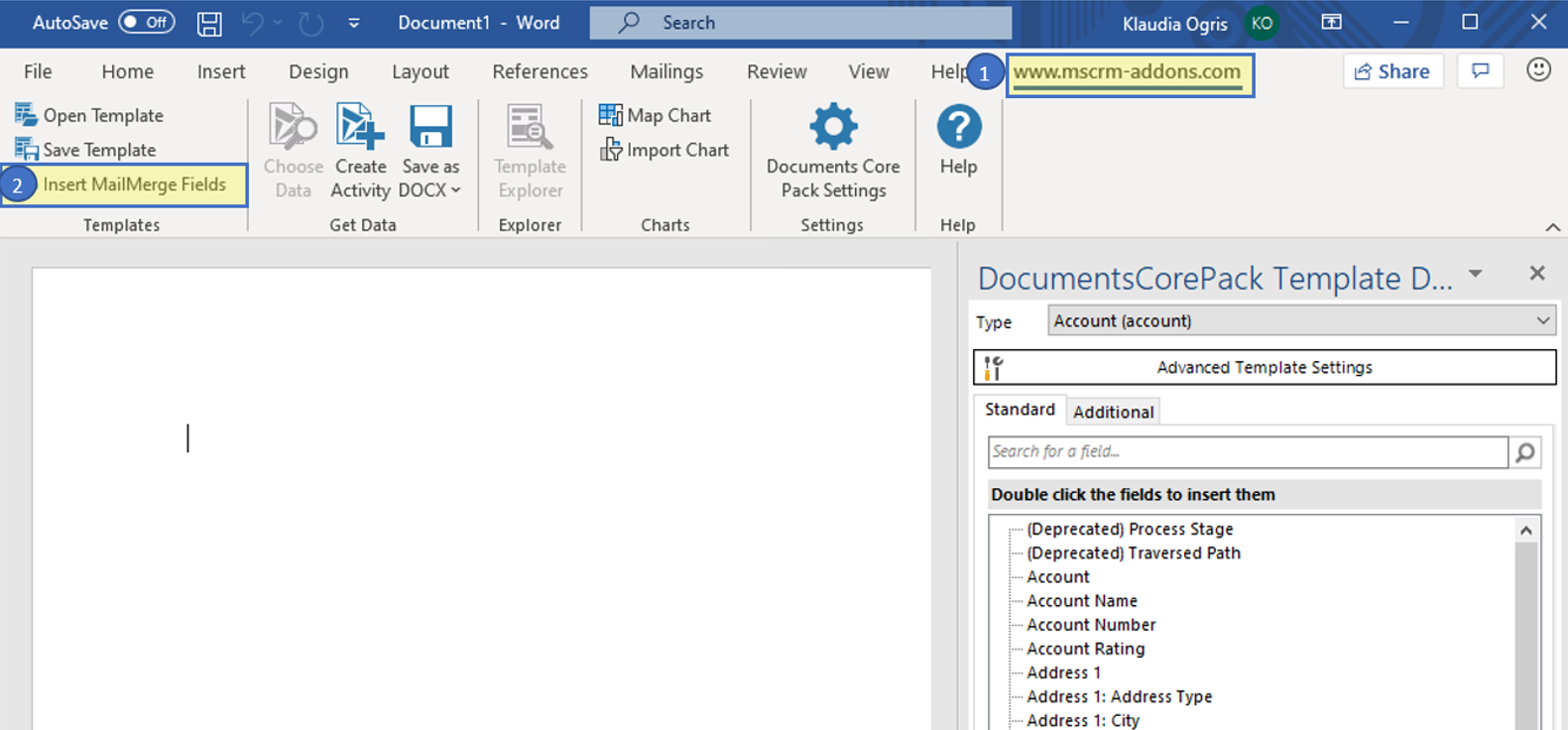

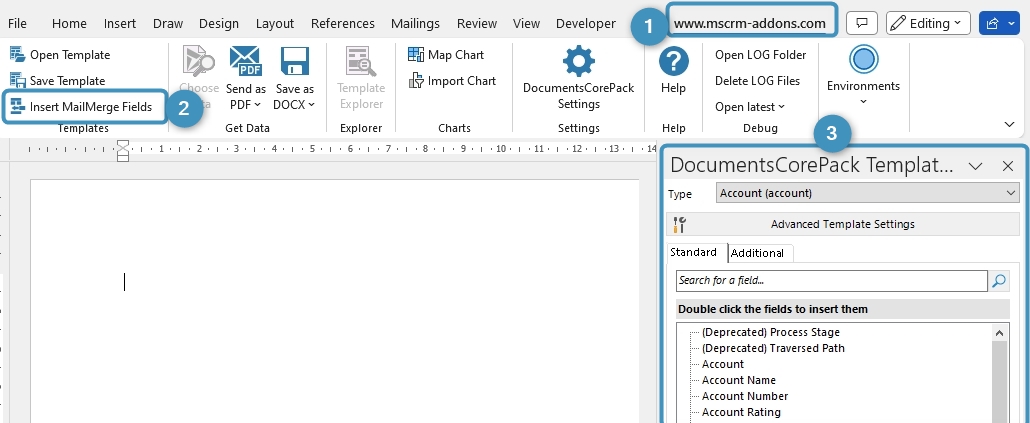

Figure 3: Open the DCP TaskPane

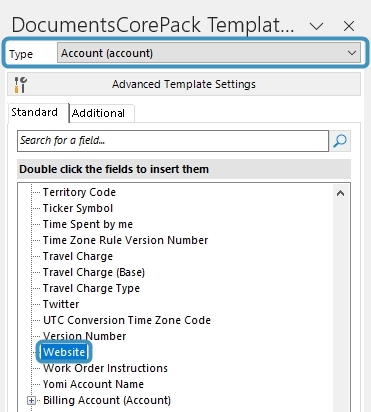

Next, select the type and the field to be inserted. In our case, we selected “Account” (select type) and the CRM-field “Website”. Click once on its name so that it’s highlighted in blue.
2 Step: Insert Option
Now click on the arrow next to the [Insert]-button. In our case, we insert the field “Website” as Picture-Link-Field.
Figure 4: [Insert]-button drop down arrow
Figure 5: Insert as Picture-Link-Field
Once clicked, a placeholder-picture appears in your document. See next screenshot:

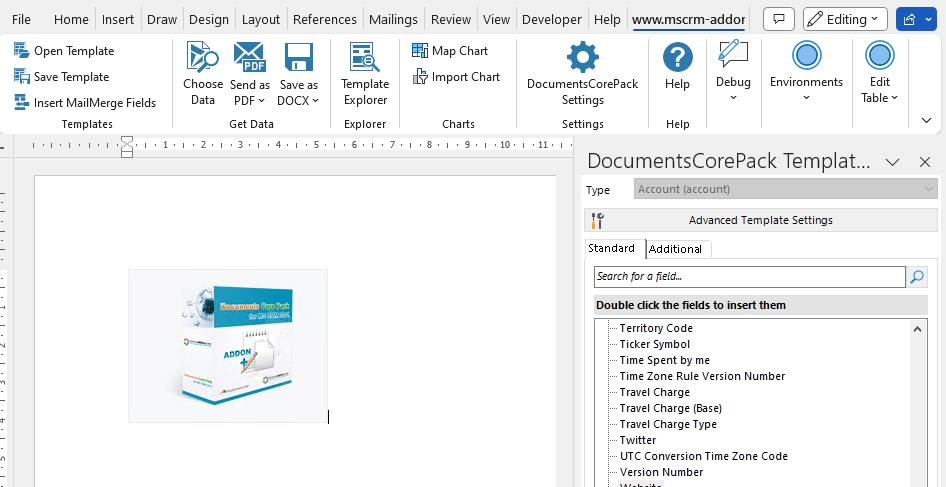

Figure 6: Placeholder picture to be inserted before the merge.
Please note: With the latest version on DocumentsCorePack for Dynamics 365 it is also possible to define a link to make the picture clickable in the result.
Details about how to set this up can be found here.
3 Step: The Result
As you can see in the screenshot below, if you merge this template, DocumentsCorePack resolved the URL to your picture and inserted it into the document.

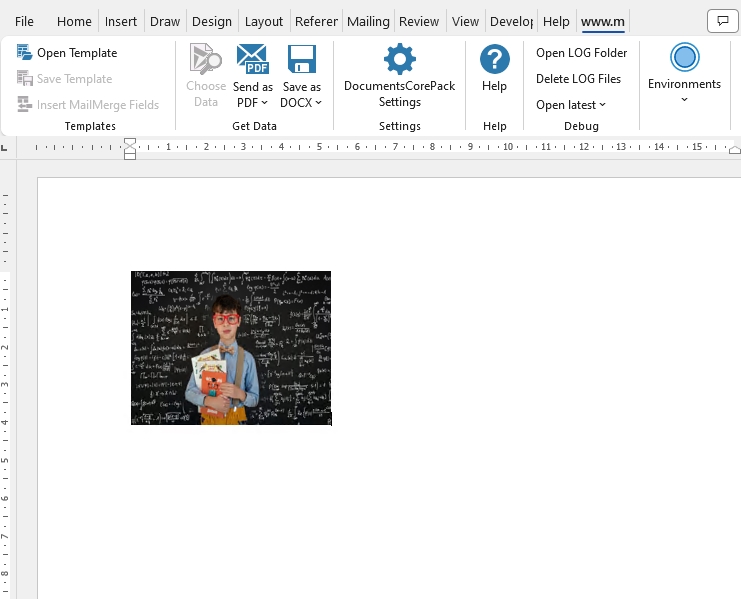

Figure 7: The result
For detailed product information, please visit our product page.
For more information about how to include pictures in templates, please click here and watch our product video.
That’s it! We appreciate your feedback! Please share your thoughts by sending an email to support@mscrm-addons.com.
